Specializing in farm equipment sales, parts, and service.

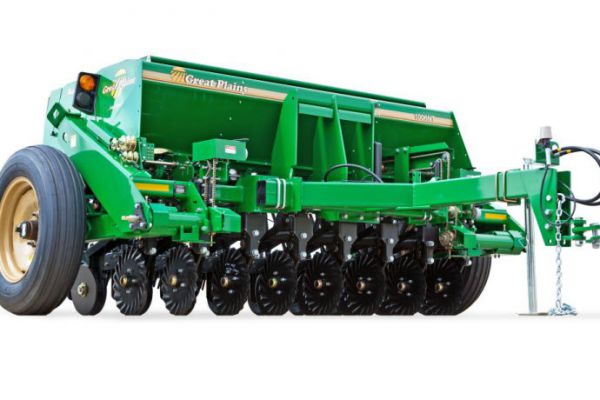

Seed Placement 1006NT

Double tap to zoom



Features

STANDARD WEIGHT BRACKETS

Add standard tractor weights to the weight brackets for even better penetration in tough no-till conditions.

LOCK-OUT HUBS

Disengages all drive components, reducing wear and tear during transport.

Folding Tongue

Takes less room in storage or on a trailer. (Approx. 40")

Fluted Seed Cups

With powdered metal flutes, these 1¾" seed cups deliver outstanding accuracy.

T-Handle Opener Depth Adjustment

Provides 18 different positions for accurate depth control.

Calibration Crank

Conveniently calibrate the machine to only put on the desired amount of seed.

4-Speed Gearbox

Changing seed rates is quick and effortless with these permanently lubricated, sealed gearboxes.

Specifications

MODEL INFO 10' Pull-Type
MODEL 1006NT
PRIMARY DESIGN End Wheel No-Till
ROW SPACINGS 7.5" (19.05 cm)
NUMBER OF OPENERS 15
TIRE SIZE 9.00 x 24 8-ply
Hp REQUIREMENTS (min) 75+hp
WEIGHT (Approx.) 4,300 lbs* (2,041 kg)
DIMENSIONS
WORKING WIDTH 10' (3.05 m)
WIDTH 12'7" (3.84 m)
LENGTH (transport) 13'10" (4.22 m)
CLEARANCE (transport) 13.5" (34.29 cm)
HEIGHT (transport) 6'7" (2.0 m)
OPENER INFO
OPENER SERIES 06 Series
OPENER TRAVEL 6.5" (16.51 cm)
OPENER DEPTH RANGE 0-3.5" (0-8.89 cm)
OPENER DOWN PRESSURE 90-180 lbs (40.82-81.64 kg)
COULTER 5/8" Turbo or 5/16" Fluted
COULTER PRE-LOAD 450 lbs (203 kg)
CAPACITIES
MAIN BOX CAPACITY 23.75 bu.
SMALL SEED BOX 2.4 bu.
NATIVE GRASS BOX 10 bu.
FERTILIZER 9.2 cu./ft.
2ND MAIN BOX 10 bu.
