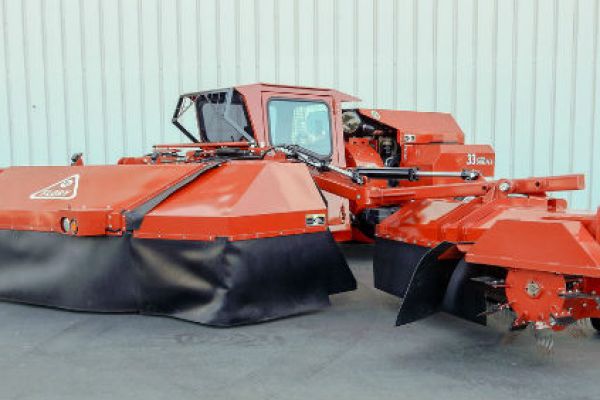

Call UsFlory 33 Series Sweeper (International Only)
33 Series Sweeper (International Only) 33 Series Sweeper (International Only)
Overview:
Flory’s 33 series sweeper offers the best in operator comfort and visibility. We have redesigned the proven 30 SERIES head to accommodate today’s larger crops and windrows. With a steeper attack angle and new tine bars the 33 SERIES has a much better crop flow and faster discharge. We have mounted the paddles out in fr... + Read More
Features
- John Deere Tier 4i engine 4.5L
- New engine mounting system for smoother operation
- Improved air cleaner system that can be serviced
- Completely new reel frame design.
- Hi capacity sweeping head.
- Steeper attack angle
- Improved internal clearances
- Paddle wheel out in front.
- Improved structural tubing design
- New improved tine bar design
- Additional head lift for ease of loading.
- Improved visibility over the head.
- New and improved Cleanfix fan with additional air flow.
- Improved fan control system and new AC system. Air comes up behind operator with heater standard
- New seat with mechanical suspension
- Improved cab door with easier operation.
- Improved instrumentation
- Fuel gauge on display in cab
- Air filter restriction indicator on display in cab
Specifications
| Engine | Tier 4i John Deere 4.5L |
| Height | 58" |
| Weight | 6,180 lbs |
| Fuel Capacity | 34 Gallon |
| Hydraulic Oil Capacity | 34 Gallon |
| Sweeping Widths | 5 Bar Head 6'6" | 5 Bar Head 7'6" | 5 Bar Head 8'6" | 6 Bar Head 7' | 6 Bar Head 8' |
| Options | Side - Kick | Brush Kit | 4 Wheel Drive Kit | Herbicide Spray Kit |
