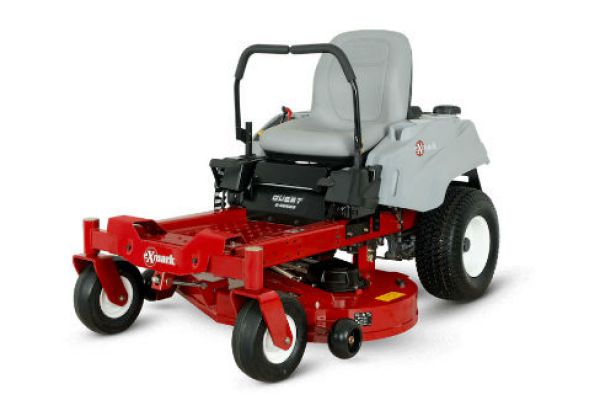

QUEST E-SERIES QZE702GEM42200
Overview:
The Quest E-Series offers Exmark® powered engines, backed by a three-year consumer warranty. It delivers pro-like productivity with zero-turn precision for home lawns, mowing up to 2.8 acres per hour at speeds up to 7 mph. And, as you’d expect from a machine of this caliber, comfort is strictly first class—from the pre... + Read More
Features
Engine Protection
Standard, rear engine guard provides increased protection of critical engine components. The S-Series engine guard is enhanced for extra engine protection.
New Styling, Same Comfort
The redesigned Quest mower has the commercial Exmark styling and provides a premium, ergonomic seat system that delivers a smooth, comfortable ride, even over uneven terrain.
Fuel Tank Capacity
A single, 2.9-gallon tank with one fill location keeps you mowing longer with fewer fill-ups.
Exmark Engines
Built precisely to our specifications allowing us to control engine quality from start to finish. Super-quick and easy oil drain system, and an advanced air intake system specially designed to decrease dirt ingestion and increase performance.
Specifications
| Blade Spindles | No maintenance, sealed and non-greasable spindles; 5.50"-diameter cutter housing with 0.67"-diameter spindle shaft. |
| Drive Tires | 18 x 7.50-8, 2-ply Turf Tech TL |
| Tractor Frame | Unibody, Riveted 10 ga. Steel |
| Steering Control | Hydraulically dampened twin levers, adjustable both fore and aft. Levers are also adjustable to 2 height positions. |
| Front Caster Tires | 11 x 4-5 smooth tread, pneumatic |
| Parking Brake | Lever-actuated pawl brake. |
| Seat | Extra High Back foam padded. Hinged mounting, spring suspension. Adjustment: Fore and aft 3 in. by loosening 2 bolts and sliding seat. |
| Electrical | 12-volt battery with 15-amp alternator. |
| Standard Features | Cup holder |
| Optional Features | Engine hour meter |
| Engine Brand | Exmark |
| Engine Model | 702 |
| Engine Displacement | 708 |
| Engine Series | V-Twin |
| Engine Speed | 3,300 rpm |
| Air Filter | Standard Engine Manufacturer's air filter |
| Fuel Type | Gas Carbureted |
| Fuel Capacity | High-capacity, 3.0-gallon (11.0-L), single fuel tank with single fill location. |
| Fuel Indicator | Translucent Visual |
| Drive | Hydro-Drive |
| Drive Description | Two Hydro-Gear ZT2100 hydro static transmissions with no hoses, integrated cooling fans, integrated reservoir. |
| Speed | Infinitely variable speed selection from 0–7 mph (11.3 km/h) forward. 0–3.4 mph (5.5 km/h) reverse. |
| Carb Compliant | No |
| Deck Lift | Standard: lever lift. |
| Safety Package | Operator Presence Controls (OPC) and drive system interlock. |
| ROPS | None |
| PTO Engagement | MagStop electromagnetic 80-ft-lbs clutch |
| Drive Wheel Release | Allows unit movement without engine running. |
| Casters | .38" thick caster yoke arms |
| Width / Cutting Deck | 42" |
| Deck Style | Floating Deck |
| Deck Style Description | Exmark Series-2 fabricated and welded steel deck. Side discharge standard with the option to bag or mulch. |
| Deck Construction | 10-gauge top that is formed and welded, 12-gauge side skirt and 7-gauge welded bumper. |
| Blade Tip Speed | Approximately 18,500 fpm. |
| Cutting Heights | 1.5" (3.8 cm) to 4.5" (11.4 cm) in 0.5" (1.3 cm) increments, adjustable from operator seat with standard lever lift. |
| Blades | 2 Blades at 21.60" Length |
| Width | 53.8 in. (136.7 cm) |
| Length | 73.0 in. (185 cm) |
| Height | 40.7 in. (103.4 cm) |
| Curb Weight | 562 |
