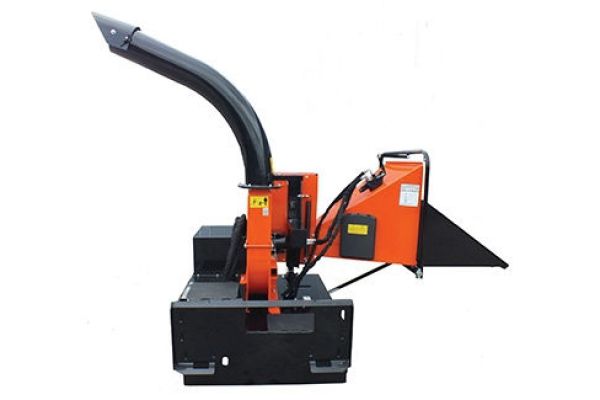

Echo CH800H 8 Inch Chipper

Double tap to zoom



Features

The ECHO Bear Cat CH800H chipper is driven by the hydraulic system of the skid or track steer loader it's mounted to. The CH800H requires 25-38 gpm flow to drive the hydraulic feed roller and chipping rotor. At 38 gpm flow, the 275 lb. rotor turns at 2,500 rpm.

The CH800H chipper features two, universal attachment plate positions so the user can feed the chipper from the side or front, depending on what the operator needs or the situation dictates. The 360 degree rotating discharge tube with deflector cap allows placement of chips where ever they need to go.

Specifications

Chipper
Feed System: Hydraulic
Auto Feed: Yes
Chute Opening: 30'' x 31''
Chipping Blades: 4 reversible steel blades with 4-sided adjustable anvil
Rotor Size/Weight: 30'' x 1.25'' / 275 lbs., rotates at: 1,600 RPM at 25 GPM, 2,500 RPM at 38 GPM

Dimensions
Max Chipping Capacity: 8''
L x W x H: 74'' x 60'' x 88''
Weight: 1,525 lbs.
Chute Throat: 9'' x 9''

Engine
Power Source: 25-38 GPM
