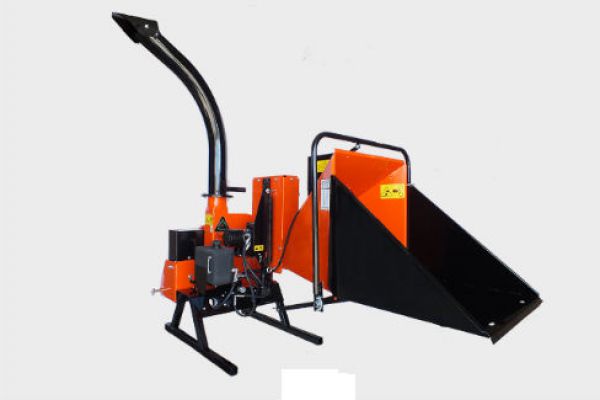

Echo CH5540HM - 5 Inch PTO Chipper

Double tap to zoom



Features

If a 5 inch PTO chipper is what you need, ECHO Bear Cat has just the right machine for you. You choose the model based on your power requirements.

The CH5540HM both comes equipped with a 20 x 1.25 inch, 140 pound, dynamically balanced steel rotor with four reversible chipper blades, easy feeding with a big 27 inch x 28 inch feed hopper and 5.5 inch x 7 inch chipper throat opening that allows small side limbs, 360 degree rotating 6 inch discharge chute.

*NOTE - For Use On Tractors with PTO Horsepower Ratings From 25 hp to 45 hp

Specifications

Chipper
Hydraulic Controller: Manual
Feed System: Hydraulic
Chipper Chute Opening: 28'' x 28''
Chipping Blades: 4 Reversible Heat-treated
Rotor Size/Weight: 20'' x 1.25''/140 lbs.

Dimensions
L x W x H: 68'' x 49'' x 90''
Weight: 980 lbs.
Chute Throat: 5.5'' x 7.5''

Engine
PTO Input Power Range: 25-45 hp
PTO Capable: Yes
Drive Type: Double-Banded Belt
