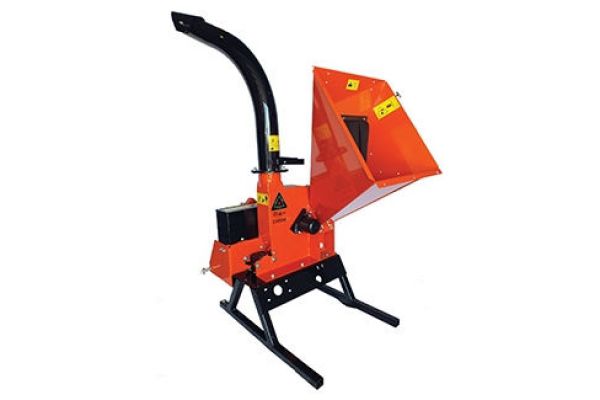

Echo CH5540 5 Inch PTO Chipper

Double tap to zoom



Features

If a 5 inch PTO chipper is what you need, ECHO Bear Cat has just the right machine for you. You choose the model based on your power requirements. If you have a utility tractor with a 540 rpm PTO, one of these is your pick.

Model CH5540 is equipped with a 20 x 1.25 inch, 140 pounds dynamically balanced steel disc with four reversible chipper blades, easy feeding with a big 27 inch x 28 inch feed hopper and 5.5 inch x 7 inch chipper throat opening that defies small side limbs, 360 degree rotating 6 inch discharge chute. The power source is category 1, 3 point hitch PTO.

*NOTE - For Use On Tractors with PTO Horsepower Ratings From 25 hp to 45 hp

Specifications

Chipper
Feed System: Gravity/Self Feed
Chipping Blades: 4 Reversible Heat-treated
Rotor Size/Weight: 20" x 1.25"/140 lbs.
Drive Type: Double-Banded Belt

Dimensions
Max Chipping Capacity: 5''
L x W x H: 50'' x 45'' x 90''
Chipper Chute Throat: 5.5'' x 7.5''
Weight: 600 lbs.
Chipper Chute Opening: 28'' x 28''

Engine
PTO Input Power Range: 25-45 hp
PTO Capable: Yes
