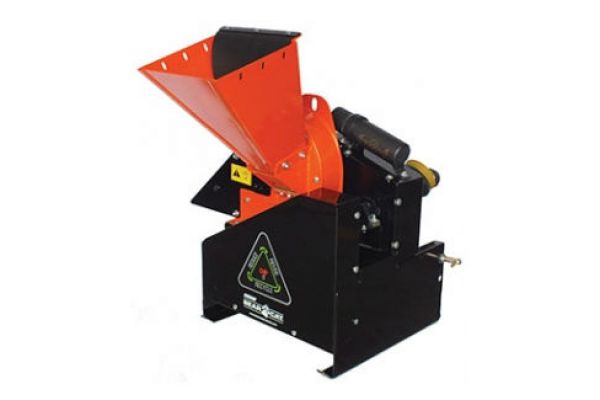

Echo CH45540 4.5 Inch PTO Chipper

Double tap to zoom



Features

The ECHO Bear Cat CH45540 is the perfect match for your compact tractor. It's built with heavy-duty, 7-gauge steel. The 14 x 1 inch thick, 49 pound dynamically-balanced rotor utilizes two reversible heat-treated chipper blades and is driven by a double-banded belt for maximum power transfer. The cantilever mounted rotor design helps reduce wrapping while chipping wet, stringy wood types.

Also available is an optional 4.5 x 4.5 inch truckloading discharge chute with deflector cap. This optional chute directs the chips and raises the discharge of chips into the trailer or back of a pickup.

*NOTE - For Use On Tractors with PTO Horsepower Ratings From 15 hp to 28 hp

Specifications

Chipper
Feed System: Gravity/Self Feed
Chute Opening: 13'' x 14.5''
Chipping Blades: 2 Reversible Heat-treated
Rotor Size/Weight: Cantilevered 14" x 1"/49 lbs.

Dimensions
Max Chipping Capacity: 4.5''
L x W x H: 40'' x 41'' x 44''
Weight: 361 lbs.
Chipper Chute Throat: 4.5'' x 5''

Engine
PTO Input Power Range: 15-28 hp
PTO Capable: Yes
Drive Type: Double-Banded Belt
