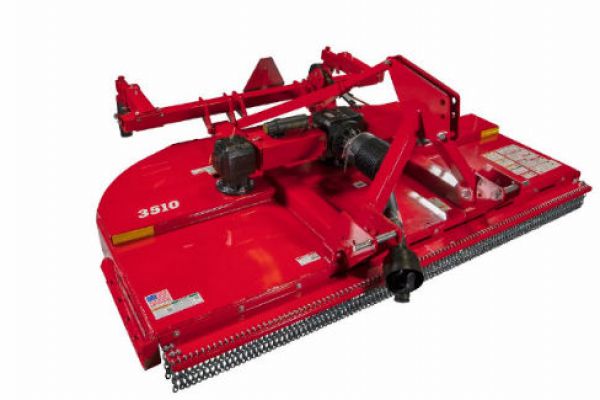

Bush Hog 3510 Offset

Double tap to zoom



Features

Performance Features
  • 10-feet, 6-inch cutting width
  • Deflector options
  • Folding shields over all cross shafts
  • Wide-angle constant velocity drive-shaft on pull models
Construction Features
  • Structural steel bracing and reinforced welding at all high stress points
  • Shields over all cross shafts fold away for quick access to clutch or universal joints
  • Special rubber-cushioned axle arms reduce shock during operation & transport
  • Wide-angle, constant velocity drive-shaft on pull models relieves the PTO working angle to reduce vibration
Product Features
  • Special rubber-cushioned axle arms reduce shock loads during operation and transport.
  • A wide angle, constant velocity driveshaft on pull models relieves the PTO working angle. This reduces vibration and allows smoother cutting in sharp turns.
  • All Bush Hog® Multi-Spindle rotary cutters feature structural steel bracing and reinforced welding at all high stress points. Streamlined deck design inhibits trash and water buildup problems.
  • Shields over all cross shafts fold conveniently out of the way to allow quick access to clutch or universal joints.

Specifications

Model 3510 Offset
Cutting Width 10-feet, 6-inches
Cutting Capacity Up to 3-inches
Cutting Height 2 to 13-inches
Dimensions (WxL) 11-feet, 1-inch x 13-feet, 5-inches (Pull)
Type Hitch Pull Type (Self-Leveling); (7-feet, 10-inches Offset Beyond Tractor Center Line)
Deck Thickness 10-gauge
Side Bands 1/4-inch x 10-inches
Minimum Tractor HP 50 PTO
Driveline ASAE Category 5
Cross Shaft ASAE Cat. 5 Rubber Element
Gearbox HP (3) 210 Center and 210 Outboard
Tractor PTO Speed 540 RPM
Driveline Protection 4 Plate PTO Slip Clutch
Height Adjustment for Heavy Duty Axle only Manual or Hydraulic
Blade Holder(s) Round
Blades 1/2-inch x 4-inches - Uplift
Blade Tip Speed 16,881 FPM/540 RPM; 17,400/1,000 RPM
Blade Overlap 3-inches
Tires Laminated, Airplane
Axles Rubber Cushioned; Choice of Single or Dual Axle
Deflectors Selection: Front chains and read bands or chains
Safety Tow Chain (Pull with Single Axle) 2,624-lbs
Warranty 1-year limited warranty with a 5-year gearbox limited warranty
Features High Blade Tip Speeds, Deep Sidebands
