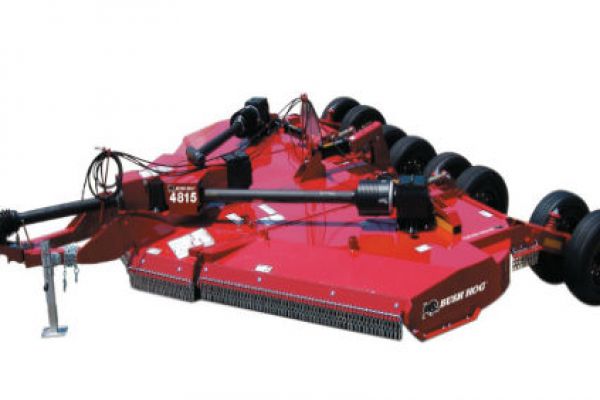

Bush Hog 4815

Double tap to zoom



Features

Construction Features
  • Heavy structure on center section and wings.
  • Wing skids are 3/8” thick with an outside angle of 45 degrees to stop “ground dig-in” during turns.
  • All axle spindles are half shafts for quick and less costly maintenance.
  • Center section blades align closely with outside center tires to closely cut out the bottom of ditches.
  • Grease fittings and spring steel bushings are at axle pivot points for longer life.
  • Each cutting gearbox has a 3 inch output shaft with more and deeper splines than competitor models for maximum torque load capabilities.
  • All drivelines are EZ lube with grease points aligned and the cross bearing fitting is in the end cap.



Safety Features

  • Highway Safety Lights Standard

Specifications

Model 4815
Transport Height 7 ft., 3 in.
Splitter Gearbox 250 H.P.
Gear Box Warranty 6 years
Transport Width 8 ft., 2 in.
Cutting Gearbox 225 H.P.
Cutting Width 15 ft.
Cutting Height 2 in. to 14 in.
Cutting Capacity 4.5 in. diameter
Blade Tip Speed 16,000 FPM
Hitch Perm-level or ball type
Minimum Tractor PTO 70 H.P.
Top Deck Center Section 11 ga.
Side Band 1/4 in. x 12 in.
Bottom Deck Center Section 7 ga.
Deck, Wings 7 ga.
Blades 1/2 in. x 4 in.
PTO Drivelines ASAE Cat 6
Wing Drivelines ASAE Cat 5
Wing Adjustment Turnbuckles
Wing Flex 22° down / 87° up
Wing Fee Float 22° down / 45° up
Axle Cushions Springs at each wheel
Safety Tow Chain Standard
Highway Safety Lights Standard
