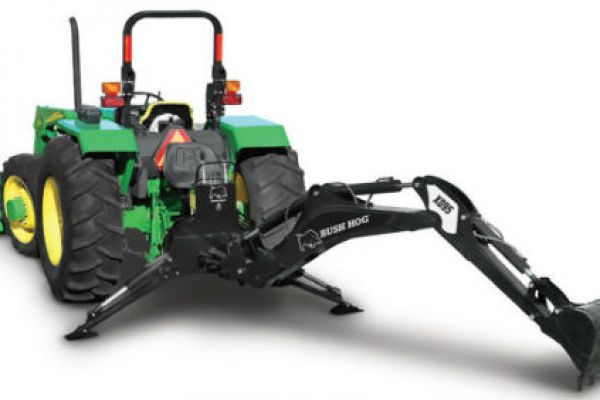

Bush Hog XD95 Backhoe

Double tap to zoom



Features

Performance Features
  • Digging Depth (2 ft. flat bottom): 9’4”
  • Overall Operating Height (fully raised): 135”
  • Reach from Swing Post: 141”
  • Bucket Rotation: 180°
  • Swing Arc: 180°



Safety Features

  • Stabilizer Width: 89”

Specifications

Model XD95
Transport Height (with boom fully retracted) 92"
Transport Width (with stabilizers up) 42½"
Loading Height (bucket at 60° rotation) 89"
Ground Clearance 10½"
Transport Length 81"
Transport Weight (base unit only - no bucket or mounts) 850 lbs.
Digging Depth (2 ft. flat bottom) 9'4"
Overall Operating Height (fully raised) 135"
Reach from Swing Post 141"
Bucket Rotation 180°
Swing Arc 180°
Stabilizer Width (Spread) 89"
Stabilizer Width (Transport) 42½"
Operating Pressure 2250 psi
SAE* Dipper Boom Digging Force 3200 lbs.
SAE* Bucket Digging Force 3925 lbs.
Boom Lift Capacity (end of dipper 3' from ground) 750 lbs.
Hydraulic Volume Requirements 5-7 gpm*
Flow Divider Included
Recommended Tractor HP 30-100 HP
Recommended Skidsteer Requirements 30-100
Bucket Sizes Available 9, 12, 15, 18, 24
3 Point Hitch Cat I (PT300) / Cat II (PT322)
Cylinder Diameters
Main Boom Cylinder Diameter 3
Dipper Cylinder Diameter 2.5
Bucket Cylinder Diameter 2.5 (x2)
Swing Cylinder Diameter 2.5
Stabilizer Cylinder Diameter 3
Extender Cylinder Diameter -
