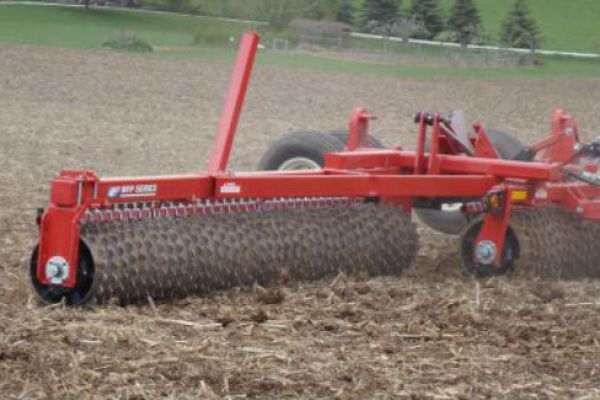

Brillion WFP28

Double tap to zoom



Features

Endless Options and Sizes to Accommodate Any Operation

  • Gray Iron Wheels Covered by Standard 1-Year Warranty
  • Ductile Iron Wheels Covered by 5-Year Limited Warranty
  • 1 ¾” Trunnion Bearings on X, XL, XXL and Wing Float Pulverizers Covered by 3-Year Limited Warranty
  • Scraper Kits Available for Notched Wheel Types and V-Style Wheels
  • Powder Coat Paint


WFP Series, Wing Float Pulverizer - 22' to 36' Models

  • Patented Wing Float Design
  • Working Widths From 23’4” to 37’4”
  • Transport Heights Under 11'
  • Transport Width 14'
  • Telescoping Drawbar on 28' to 36' Models
  • 8" Pulverizer Axle Size
  • 1 ¾” Trunnion Bearings
  • Maintenance Free Rockshaft Bearings
  • Pulverizer Wheel Styles:
    • 20" Notched Ductile Iron
    • 20" Optimizer® Ductile Iron
    • 20” Crowfoot Ductile Iron

Specifications

Model WFP28
Approximate Weight
(WFPDS) 20" Notched Ductile Iron Wheels with Scrapers 8,359 lbs. (3,792 kg)
(WFPD) 20" Notched Ductile Iron Wheels Excluding Scrapers 8,085 lbs. (3,667 kg)
(WFPO) 20" Optimizer Ductile Iron Wheels 8,462 lbs. (3,838 kg)
(WFPC) 20" Crowfoot Ductile Iron Wheels 7,435 lbs. (3,372 kg)
Approximate Tongue Weight
Drawbar Retracted, Transport 1,800 lbs. (816 kg)
Drawbar Extended, Transport 1,400 lbs. (635 kg)
Operation Under 100 lbs. (45 kg)
Working Width 29 ft. 4 in. (8.9 m)
Transport Width 14 ft. 0 in. (4.3 m)
Transport Height 9 ft. 4 in. (2.8 m)
Overall Length, Drawbar Retracted 17 ft. (5.2 m)
Overall Length, Drawbar Extended 22 ft. (6.7 m)
Overall Length, Rigid Drawbar N/A
Road Clearance 11.5 in. (292 mm)
Automatic Transport Lock Standard
Hydraulic Circuits Required 1
Number of Pulverizer Wheels
(WFPDS) 20" Notched Ductile Iron Wheels with Scrapers 90
(WFPD) 20" Notched Ductile Iron Wheels Excluding Scrapers 90
(WFPO) 20" Optimizer Ductile Iron Wheels 59
(WFPC) 20" Crowfoot Ductile Iron Wheels 59
Axle Size 8 in. (203 mm)
Hitch Pull-Type with Hydraulic Transport
Tire Size 11L x 15 Tires on 6 Bolt Rims
Scraper Kits Standard on Models with "S"
WFP Float Lock Kit Optional
WFP Hydraulic Top Link Kit Optional
Telescoping Drawbar Standard
Electronic Acre Meter Kit Optional
LED Safety Warning Lights & SMV Emblem Standard
Safety Chain Kit Standard
Powder Coat Paint, Red Standard
Horsepower Requirements 3 to 5 HP per ft. (2.2 to 3.7 kW per m)
Horsepower Requirements As Companion Tool 1 to 3 HP per ft. (0.75 to 2.2 kW per m)
Recommended Operating Speed 3 to 8 MPH (4.8 to 12.9 km/h)
