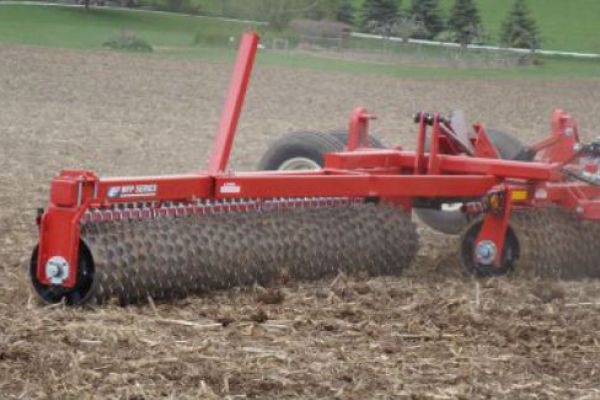

Brillion WFP22

Double tap to zoom



Features

Endless Options and Sizes to Accommodate Any Operation

  • Gray Iron Wheels Covered by Standard 1-Year Warranty
  • Ductile Iron Wheels Covered by 5-Year Limited Warranty
  • 1 ¾” Trunnion Bearings on X, XL, XXL and Wing Float Pulverizers Covered by 3-Year Limited Warranty
  • Scraper Kits Available for Notched Wheel Types and V-Style Wheels
  • Powder Coat Paint


WFP Series, Wing Float Pulverizer - 22' to 36' Models

  • Patented Wing Float Design
  • Working Widths From 23’4” to 37’4”
  • Transport Heights Under 11'
  • Transport Width 14'
  • Telescoping Drawbar on 28' to 36' Models
  • 8" Pulverizer Axle Size
  • 1 ¾” Trunnion Bearings
  • Maintenance Free Rockshaft Bearings
  • Pulverizer Wheel Styles:
    • 20" Notched Ductile Iron
    • 20" Optimizer® Ductile Iron
    • 20” Crowfoot Ductile Iron

Specifications

 Model WFP22
Approximate Weight
(WFPDS) 20" Notched Ductile Iron Wheels witd Scrapers 7,205 lbs. (3,268 kg)
(WFPD) 20" Notched Ductile Iron Wheels Excluding Scrapers 6,985 lbs. (3,168 kg)
(WFPO) 20" Optimizer Ductile Iron Wheels 7,270 lbs. (3,298 kg)
(WFPC) 20" Crowfoot Ductile Iron Wheels 6,440 lbs. (2,921 kg)
Approximate Tongue Weight
Drawbar Retracted, Transport N/A
Drawbar Extended, Transport 1,300 lbs. (590 kg)
Operation Under 100 lbs. (45 kg)
Working Widtd 23 ft. 4 in. (7.1 m)
Transport Widtd 14 ft. 0 in. (4.3 m)
Transport Height 8 ft. 4 in. (2.5 m)
Overall Length, Drawbar Retracted N/A
Overall Length, Drawbar Extended N/A
Overall Lengtd, Rigid Drawbar 21 ft. (6.4 m)
Road Clearance 11.5 in. (292 mm)
Automatic Transport Lock Standard
Hydraulic Circuits Required 1
Number of Pulverizer Wheels
(WFPDS) 20" Notched Ductile Iron Wheels witd Scrapers 72
(WFPD) 20" Notched Ductile Iron Wheels Excluding Scrapers 72
(WFPO) 20" Optimizer Ductile Iron Wheels 47
(WFPC) 20" Crowfoot Ductile Iron Wheels 47
Axle Size 8 in. (203 mm)
Hitch Pull-Type witd Hydraulic Transport
Tire Size 11L x 15 Tires on 6 Bolt Rims
Scraper Kits Standard on Models witd "S"
WFP Float Lock Kit Optional
WFP Hydraulic Top Link Kit Optional
Telescoping Drawbar Optional
Electronic Acre Meter Kit Optional
LED Safety Warning Lights & SMV Emblem Standard
Safety Chain Kit Standard
Powder Coat Paint, Red Standard
Horsepower Requirements 3 to 5 HP per ft. (2.2 to 3.7 kW per m)
Horsepower Requirements As Companion Tool 1 to 3 HP per ft. (0.75 to 2.2 kW per m)
Recommended Operating Speed 3 to 8 MPH (4.8 to 12.9 km/h)
