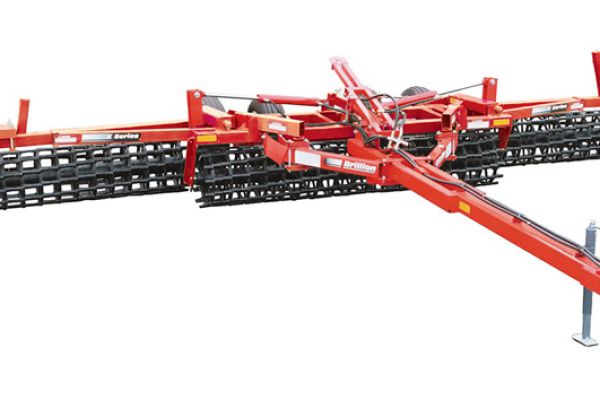

Brillion P7

Double tap to zoom



Features

P Series, Pull-Type/No Transport Models

  • Working Widths From 5’ to 16’
  • Pulverizer Wheel Styles:
    • 20" Notched Ductile Iron - 5' to 16' Models
    • 16” Notched Gray Iron - 5’ to 8’ Models
    • 16” Crowfoot Gray Iron - 5’ to 8’ Models
    • 20” Crowfoot Ductile Iron - 10’ to 16’ Models

Specifications

Model P7
Approximate Weight
(PM) 16" Notched Gray Iron Wheels 1,032 lbs. (464 kg)
(PD) 20" Notched Ductile Iron Wheels 813 lbs. (366 kg)
(PC) 16" Crowfoot Gray Iron Wheels 902 lbs. (406 kg)
(PDC) 20" Crowfoot Ductile Iron Wheels N/A
Working Width 7 ft. 0 in. (2.1 m)
Transport Width 7 ft. 8 in. (2.3 m)
Transport Height 2 ft. 6 in. (750 mm)
Overall Length 7 ft. 9 in. (2.33 m)
Number of Pulverizer Wheels
(PM) 16" Notched Gray Iron Wheels 21
(PD) 20" Notched Ductile Iron Wheels 21
(PC) 16" Crowfoot Gray Iron Wheels 14
(PDC) 20" Crowfoot Ductile Iron Wheels N/A
Axle Size 4 in. (100 mm)
Hitch Pull-Type/No Transport
Scraper Kits Optional for PM & PD Series
Hydraulic Transport Kit N/A
LED Safety Warning Lights & SMV Emblem SMV Emblem Only
Safety Chain Kit N/A
Powder Coat Paint, Red Standard
Horsepower Requirements 45 HP (33.6 kW)
Recommended Operating Speed 3 to 6 MPH (5 to 10 km/h)
