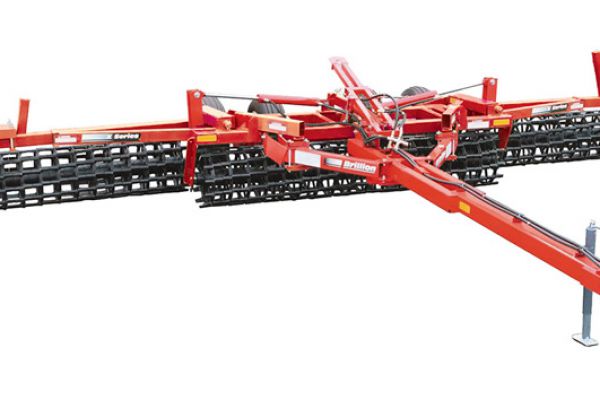

Brillion P6

Features
P Series, Pull-Type/No Transport Models
- Working Widths From 5’ to 16’
- Pulverizer Wheel Styles:
- 20" Notched Ductile Iron - 5' to 16' Models
- 16” Notched Gray Iron - 5’ to 8’ Models
- 16” Crowfoot Gray Iron - 5’ to 8’ Models
- 20” Crowfoot Ductile Iron - 10’ to 16’ Models
Specifications
Model | P6 |
Approximate Weight | |
(PM) 16" Notched Gray Iron Wheels | 903 lbs. (406 kg) |
(PD) 20" Notched Ductile Iron Wheels | 715 lbs. (322 kg) |
(PC) 16" Crowfoot Gray Iron Wheels | 791 lbs. (356 kg) |
(PDC) 20" Crowfoot Ductile Iron Wheels | N/A |
Working Width | 6 ft. 0 in. (1.8 m) |
Transport Width | 6 ft. 8 in. (2.0 m) |
Transport Height | 2 ft. 6 in. (750 mm) |
Overall Length | 7 ft. 9 in. (2.33 m) |
Number of Pulverizer Wheels | |
(PM) 16" Notched Gray Iron Wheels | 18 |
(PD) 20" Notched Ductile Iron Wheels | 18 |
(PC) 16" Crowfoot Gray Iron Wheels | 12 |
(PDC) 20" Crowfoot Ductile Iron Wheels | N/A |
Axle Size | 4 in. (100 mm) |
Hitch | Pull-Type/No Transport |
Scraper Kits | Optional for PM & PD Series |
Hydraulic Transport Kit | N/A |
LED Safety Warning Lights & SMV Emblem | SMV Emblem Only |
Safety Chain Kit | N/A |
Powder Coat Paint, Red | Standard |
Horsepower Requirements | 35 HP (26.88 kW) and up |
Recommended Operating Speed | 3 to 6 MPH (5 to 10 km/h) |
