Specializing in farm equipment sales, parts, and service.

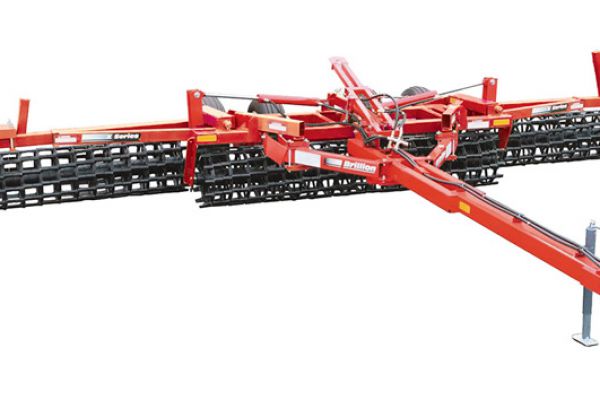

Brillion P5

Double tap to zoom



Features

P Series, Pull-Type/No Transport Models

  • Working Widths From 5’ to 16’
  • Pulverizer Wheel Styles:
    • 20" Notched Ductile Iron - 5' to 16' Models
    • 16” Notched Gray Iron - 5’ to 8’ Models
    • 16” Crowfoot Gray Iron - 5’ to 8’ Models
    • 20” Crowfoot Ductile Iron - 10’ to 16’ Models

Specifications

Model P5
Approximate Weight
(PM) 16" Notched Gray Iron Wheels 774 lbs. (348 kg)
(PD) 20" Notched Ductile Iron Wheels 617 lbs. (278 kg)
(PC) 16" Crowfoot Gray Iron Wheels 679 lbs. (305 kg)
(PDC) 20" Crowfoot Ductile Iron Wheels N/A
Working Width 5 ft. 0 in. (1.5 m)
Transport Width 5 ft. 8 in. (1.7 m)
Transport Height 2 ft. 6 in. (750 mm)
Overall Length 7 ft. 9 in. (2.33 m)
Number of Pulverizer Wheels
(PM) 16" Notched Gray Iron Wheels 15
(PD) 20" Notched Ductile Iron Wheels 15
(PC) 16" Crowfoot Gray Iron Wheels 10
(PDC) 20" Crowfoot Ductile Iron Wheels N/A
Axle Size 4 in. (100 mm)
Hitch Pull-Type/No Transport
Scraper Kits Optional for PM & PD Series
Hydraulic Transport Kit N/A
LED Safety Warning Lights & SMV Emblem SMV Emblem Only
Safety Chain Kit N/A
Powder Coat Paint, Red Standard
Horsepower Requirements 35 HP (26.88 kW) and up
Recommended Operating Speed 3 to 6 MPH (5 to 10 km/h)
