Standard Features

• 500 gallon 304 stainless steel tank
• 34 GPM / 600 PSI Comet© diaphragm pump
• 34" diameter, 8-blade axial flow steel fan
• 2-speed gearbox with neutral
• Heavy duty PTO shaft
• Tank drive shaft with rundown clutch
• 1" 304 stainless steel mechanical agitation
• Cable type remote control
• 304 stainless steel strainers
• Teejet© ceramic nozzles
• Galvanized fan housing
• Composite nylon adjustable air vanes with specialty valves
• 14Lx16.1 ribbed implement tires
• Heavy duty adjustable hubs and spindles

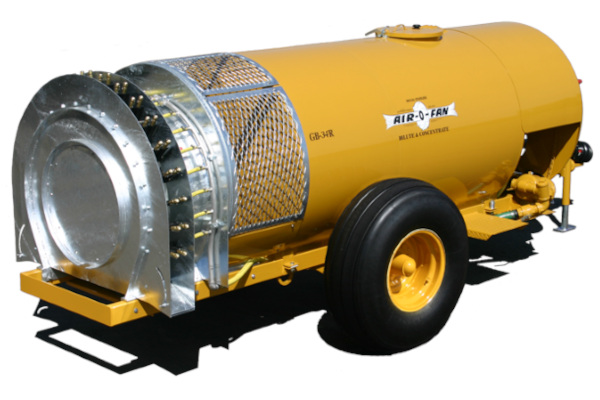

• Either short stack tower with up-spray volutes OR Vineyard volute tower

Options

• 1,000 gallon machinery upgrade
• 600 gallon 304 stainless steel tank
• 2-point turning hitch
• Tower extensions (built to specification)
• 100 GPM / 145 PSI Myers© 2-stage centrifugal pump
• 53 GPM / 600 PSI Comet© pump (Model IDS 2200)
• Hydraulic and electric spray control valves
• 2" and 3" stainless steel fill connections
• Tank drain plumbed with valve
• Indented tank (60" wide)
• Multiple tire configurations

Specifications Short Stack

• Length 500 Gal. = 15' / 600 Gal. = 15' 6
• Width 500 Gal. = 6' 6" / 600 Gal. = 6' 9
• Height Tower top 109" / 62" to 68" (adjustable)
• Weight 500 Gal. = 2,910 pounds / 600 Gal. = 2,960 pounds
• Air Velocity 130 mph (approximate)

• PTO Horse Power Requirements:  80 – 100

Specifications Volute

• Length 500 Gal. = 15' / 600 Gal. = 15' 6
• Width 500 Gal. = 6' 6" / 600 Gal. = 6' 9
• Height Tower top 109" / 62" to 68" (adjustable)
• Weight 500 Gal. = 2,910 pounds / 600 Gal. = 2,960 pounds
• Air Velocity 130 mph (approximate)

• PTO Horse Power Requirements:  80 – 100
