Standard Features

• 500 gallon 304 stainless steel tank
• 36 GPM / 600 PSI Comet© diaphragm pump
• 34" diameter, 8-blade axial flow steel fan
• 2-speed gearbox with neutral
• Heavy duty PTO shaft
• Tank drive shaft with rundown clutch
• 1" 304 stainless steel mechanical agitation
• Cable type remote control
• 304 stainless steel strainers
• Teejet© ceramic nozzles
• Galvanized fan housing
• Composite nylon adjustable air vanes with specialty valves
• 13.5Lx16.1 ribbed implement tires
• Heavy duty hubs and spindles

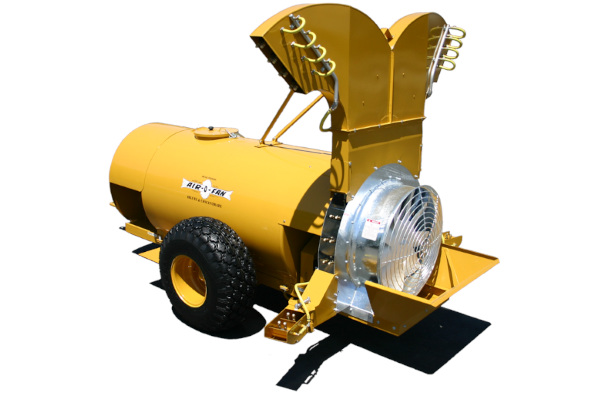

• Either short stack tower with up-spray volutes OR Vineyard volute tower

Options

• 600 gallon tank upgrade
• DK turning and 2-point turning hitches
• 100 GPM / 145 PSI Myers© 2-stage centrifugal pump
• 53 GPM / 600 PSI Comet© diaphragm pump (IDS 2200)
• Hydraulic and electric spray control valves
• 2" and 3" stainless steel fill connections
• Tank drain plumbed with valve
• Tree targeting, flow monitoring, and rate controlling systems
• Rear leaf guard

Specifications Short Stack

• Length 14' 3"
• Width 78"
• Height 62" to 68" (top of tank) / 109" (top of tower)
• Weight 2,625 pounds
• Air Velocity 130 mph (approximate)

• PTO Horse Power Requirements:  75 – 95

Specifications Volute

• Length 14' 3"
• Width 78"
• Height 62" to 68" (top of tank) / 109" (top of tower)
• Weight 2,425 pounds
• Air Velocity 130 mph (approximate)

• PTO Horse Power Requirements:  75 – 95
