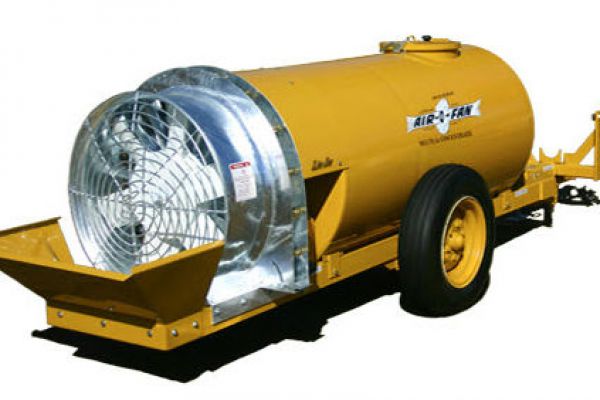

Air-O-Fan SJ-30/32 'Slim Jim'

Double tap to zoom



Features

Standard Featues

  • 300 Gallon 304 stainless steel tank
  • 26 GPM / 600 PSI Comet® diaphragm pump
  • 32" diameter, 7-blade axial flow steel fan
  • 2-speed gearbox with neutral
  • Heavy dute constant velocity PTO shaft
  • Tank drive shaft with rundown clutch
  • 1" 304 stainless steel mechanical agitation
  • Cable type remote control
  • 304 stainless steel strainers (fill, suction, delivery)
  • Galvanized fan housing
  • Short stack tower
  • Composite nylon adjustable air vanes (tower top)
  • Hard anodized aluminum air vanes (fan housing)
  • Teejet© ceramic nozzles
  • Heavy duty hubs and spindles
  • Either short stack tower volutes OR Vineyard volute tower



Options

  • DK turning & 2-point turning hitches
  • TeeJet© ceramic nozzles
  • Hydraulic and electric spray control valves
  • 2" and 3" stainless steel fill connections
  • Rear leaf guard
  • Tire and wheel exchange to 11Lx16.1 8-ply ribbed tires
  • Flow monitoring and rate controlling systems

Specifications

Specifications Short Stack

  • Tires 7.50x20" 8-ply ribbed implement tires
  • Length 13' 4"
  • Width 54"
  • Height 50" (top of tank) / 109" (top of tower)
  • Weight 1,840 pounds
  • Air Velocity 120 mph (approximate)
  • PTO Horse Power Requirements:  30 – 60



Specifications Volute

  • Tires 7.60x15" ribbed implmented tires
  • Length 14' 3"
  • Width 52"
  • Height 50" (top of tank) / 75" (top of tower)
  • Weight 1,340 pounds
  • Air Velocity 120 mph (approximate)
  • PTO Horse Power Requirements:  30 – 60
