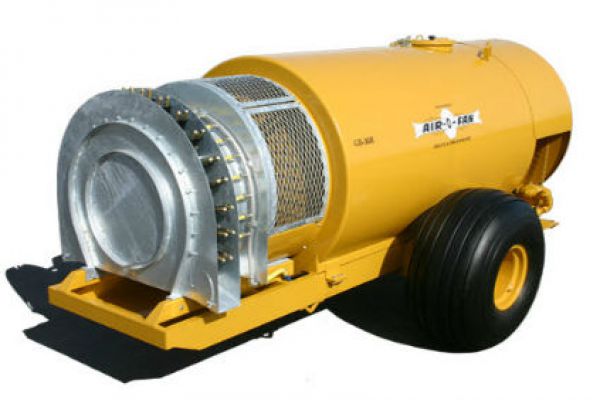

Air-O-Fan GB-36R

Double tap to zoom



Features

Standard Equipment

  • 500 gallon 304 stainless steel tank
  • 36 GPM / 600 PSI Comet® diaphragm pump
  • 36" diameter, 8-blade axial flow steel fan
  • 2-speed gearbox with neutral
  • Heavy duty PTO shaft
  • Tank drive shaft with rundown clutch
  • 1" 304 stainless steel mechanical agitation
  • Cable type remote control
  • 304 stainless steel strainers
  • Teejet© ceramic nozzles
  • Galvanized fan housing
  • Composite nylon adjustable air vanes with specialty valves
  • 13.5Lx16.1 ANS field and turf tires
  • Heavy duty adjustable hubs and spindles
  • DK hitch



Options

  • 1,000 gallon machinery upgrade
  • 600 gallon 304 stainless steel tank
  • 2-point turning hitch
  • Tower extensions (built to specification)
  • 100 GPM / 145 PSI Myers© 2-stage centrifugal pump
  • 53 GPM / 600 PSI Comet© pump (Model IDS 2200)
  • Myers 2 stage centrifugal pump
  • Hydraulic and electric spray control valves
  • 2" and 3" stainless steel fill connections
  • Tank drain plumbed with valve
  • Indented tank (60" wide)
  • Multiple tire configurations
  • 2-Port nozzle body
  • 3-Port nozzle body
  • No Drip rear manifold diaphragm
  • 4 valve multi-zone tree sensor
  • Lights
  • Fan tuning to match your tractor PTO HP
  • Burm blower attachment
  • Vineyard Up-sprays
  • Either short stack tower with up-spray volutes OR Vineyard volute tower

Specifications

Specifications Short Stack

  • Length 500 Gal. = 15' / 600 Gal. = 15' 6"
  • Width 500 Gal. = 6’ 6" / 600 Gal. = 6' 9"
  • Height Tower top = 109" / 62" to 68" (adjustable)
  • Weight 500 Gal. = 2,910 pounds / 600 Gal. = 2,960 pounds
  • Air Velocity 130 mph (approximate)
  • PTO Horse Power Requirements:  80 – 100



Specifications Volute

  • Length 500 Gal. = 15' / 600 Gal. = 15' 6"
  • Width 500 Gal. = 6’ 6" / 600 Gal. = 6' 9"
  • Height Tower top = 77" / 62" to 68" (adjustable)
  • Weight 500 Gal. = 2,910 pounds / 600 Gal. = 2,960 pounds
  • Air Velocity 130 mph (approximate)
  • PTO Horse Power Requirements:  80 – 100
