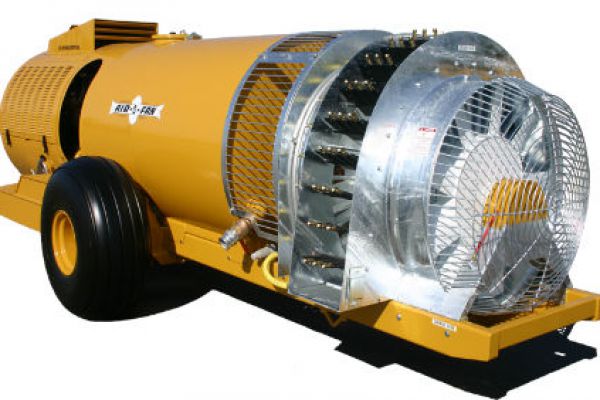

Air-O-Fan D-2/45 Diesel Engine Sprayers

Standard Features

• 9.0L, 6090HF485 (548 cu. in.) 325 HP, turbo-charged, tier 3 John Deere© diesel engine
• Twin disc PTO clutch
• 136 gallon fuel tanks
• Myers© 2-stage 100 GPM / 200 PSI centrifugal pump
• Twin 45" steel axial flow fans
• Galvanized fan housing
• Composite nylon adjustable air vanes with valves (3 nozzles per vane, 54 total)
• Teejet© ceramic nozzles
• 1" stainless steel mechanical agitation
• Stainless steel strainers (fill, suction, delivery)
• Electric, hydraulic, or Morse© cable spray control valves (standard options)
• Remote gauge box with electric throttle, electric spray control valves, key switch, and Saur Danfros© DP200 digital monitor
• 21.5Lx16.1 14-ply ribbed tires

Options

• Double or single lip swivel hitch
• Electric bypass valve
• 2" and 3" quick fill connections
• Spray lights with guarding
• Pecan volute
• Bravo© tree targeting systems
• Fan housing leaf guard

• Length............24' 8" overall
• Width..............105" outside of tires
• Height.............74" - 82" adjustable
• Weight............9,150 pounds
• Air Velocity......140 mph (approximate)

Minimum Tractor Horse Power Requirement:  85
